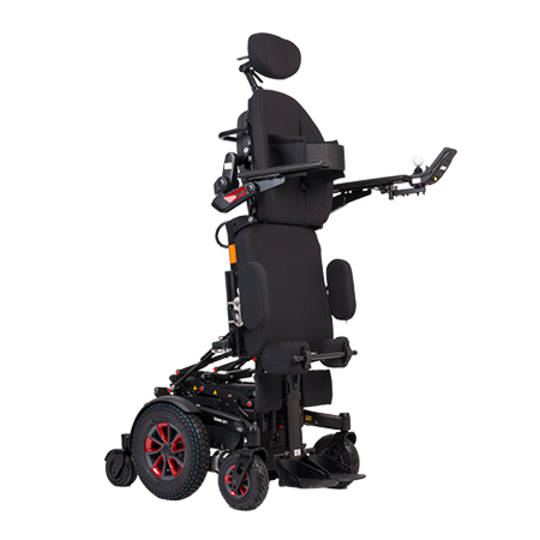

The multifunctional power wheelchair with standing function, mid-wheel drive, and memory function
The iCHAIR SKY is particularly suitable for users with changing medical conditions and more severe functional impairments. Thanks to its sophisticated design, the iCHAIR SKY enables independent mobility with excellent ergonomics for continuous, all-day use both indoors and outdoors.
Fields of Application
- The new agile power wheelchair for indoor- and outdoor use
- Practical for outdoor use due to big tyres and 10 km/h Version as an option
- Easy to maneuver due to compact measurements and perfect agility
Adjustment
- Seat width from 380 - 650 mm by means of simple telescoping side guards
- Adjustable seat depth of 400 - 560 mm
- Adjustable back, contoured seat system and preparation für external seats systems according to individual needs
- individual Myseat-System
- Electrical 60° back angle adjustment (optional)
- Electrical 26° seat angle adjustment for effective pressure relief (optional)
Operation
- Tested VR2 and R-Net technology for unsurpassed performance and versatility
- 5 speeds
- Compact dimensions and suspension are standard and make for safe travelling
Options
- MySeat System
- Crutch holder
- Safety belt with buckle
- Rear view mirror
- Pelvic belt
- Therapy table swivelling
- USB charging slot
Mid-wheel drive for utmost agility and precise manoeuvring
Memory function records movement patterns and preferred positions
40° tilt for effective pressure relief
Advanced lie-down function with biomechanics for armrests and headrest
| Seat width | 400 – 530 |
|---|---|
| Seat depth | 400 – 525 |
| Seat height | 450 / 485 / 520 |
| Back height | 540 |
| Lower leg length | 250 - 435 |
| Armrest height | 200 – 350 |
| Length with footrests min. | 1,095 |
| Transport length | 905 |
| Width, ready to move min. | 640 |
| Height without headrest | 1.080 – 1,115 |
| Obstacle height | 60 |
| Turning radius min. (with foodrests) | 640 |
| Ground clearance | 70 |
| Min. transport weight empty | 173 |
| Max. user weight incl. additional load | 140 |
| Permitted overall weight | 340 |
| Additional loading max. | 10 |
| Speed | 6 / 10 |
| Motor power W | 2 x 350 |
| Range with battery 60 Ah max. | 35 |
| Range with battery 74 Ah max. | 40 |
| Permitted uphill / downhill gradient | 15 % |
| Front wheel size | 170 x 35 (7") 200 x 50 (8") |
| Rear wheel size | 356 x 75 (14") |
| Seat tilt, electrical | 40° |
| Standing angle max. up to | 90° |
| Back angle electric | 90- 180° |
| Lift | 200 |
Dimensions in mm, Weights in kg, Speed in km/h, Tolerance ± 10 mm
