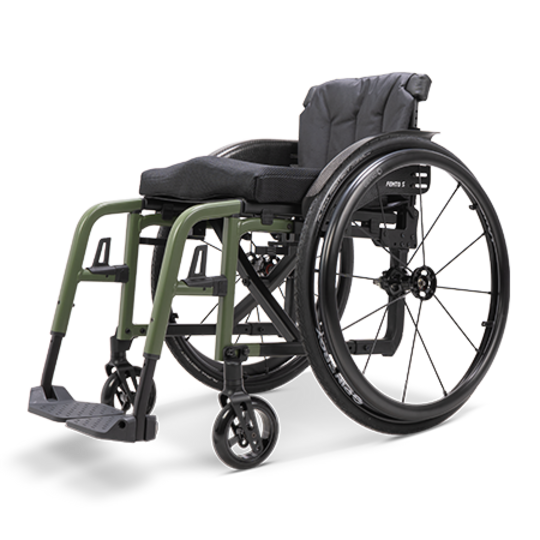

FEMTO S 1.186

FEMTO S

Application Area

  • For long-term and continuous care
  • Highly suitable for a wide range of conditions, including users with severe impairments
  • For users without lower limb function (side transfer, push rim propulsion)
  • For neurological diseases

Adjustment

  • Active adjustment options for ideal driving behavior
  • 3 frame lengths – short, medium, or long
  • Seat widths from 320 to 520 mm
  • Seat depths from 380 to 500 mm
  • The optimally adjustable caster fork ensures perfect tracking

Handling

  • Easy to handle and simple transfer
  • Very stable due to minimal screw connections at low weight
  • Low effort required for adjustments
  • Foldable, with removable backrest

Options

  • Breathable backrest and seat cover
  • Customizable push handles
  • Seat cushion
  • Spoke guards
  • Maneuvering wheels
  • Passive lighting
  • Therapy table (also for self-propellers)
  • Safety belt with lock
  • Walking aid holder (in combination with step tube)
  • Accessory net
FEMTO S

Reduced frame design

FEMTO S

Steering wheel adjustment

FEMTO S

Adjustable backrest angle

FEMTO S

Multifunctional leg rest

Seat width320340360380400420440460480500520
Width, ready to moveSeat width + 170 mm
Width folded280 with wheel camber 0° / 330 with wheel camber 3°
Seat depth340 / 360 / 380 / 400 / 420 / 440 / 460 / 480 / 500
Front seat height (FSH) / Rear seat height (RSH)425 to 560 / 390 to 530
Total heightRear seat + back height
Back heightvariabl of 250 to 500, adjustable in 15 mm steps
Armrest heightca. 170 – 245
Length with footrests880 – 1.030 (depending on frame length,wheel size)
Max. user weight130
Empty weightfrom 9,5
Permissible total weight145
Transport weight7,4
Drive wheel600 (24")
Drive wheel635 (25")
Drive wheel660 (26")
Brake test according to STANDARD7°

Dimensions in mm, weights in kg, wheels in inches, dimension tolerance ± 10 mm
